KRS-151 PN 16

District Heating

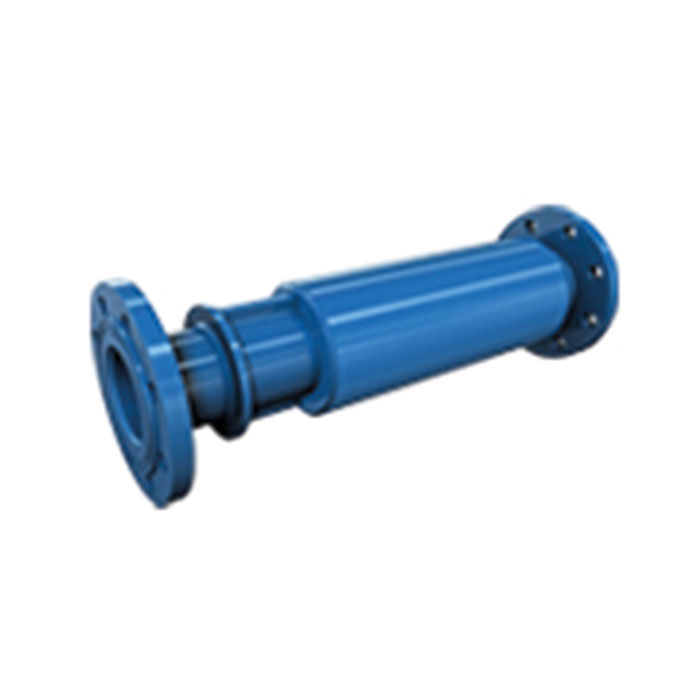

Central heating expansion joints are a type of axial expansion joint specifically designed to absorb thermal expansion in central heating systems along the axial direction. These components balance the longitudinal elongation and contraction caused by temperature differences in pipelines, contributing to the safe and efficient operation of the system.

Piping systems are divided into separate expansion zones, which are isolated from one another through fixed points. With this engineering approach, the thermal movement occurring in one expansion zone is absorbed in a controlled manner solely by the central heating expansion joint installed in that specific area.

Since central heating systems often involve long pipeline runs, fluctuating temperatures, and continuous operation, proper placement and the selection of the right type of expansion joint are critically important. Otherwise, the system may experience pressure losses, connection deformations, or sealing problems.

Central heating expansion joints minimize these risks, extend the system’s lifespan, and reduce maintenance requirements.

Clipboard Clipboard

Technical Information

Standard Production : AISI 321 (DIN 1.4541)
Special Production :  AISI 304 (DIN 1.4541), AISI 309 (DIN 1.4828), AISI 316 (DIN 1.4401), AISI 316 ti (DIN 1.4571)  etc

Design Pressure : 16 BAR
Design Temperature : – 196 + 550 C

Standard Weldend : Rst 37-2 (DIN 1.0038)
Special Weldend : Stainless Steel  etc.

Standard Flange : Rst 37-2 (DIN 1.0038) PN16 – PN25 – PN40
Special Flange : Stainless Steel  DIN, BS, EN, ANSI etc.

Brush Brush

Technical Drawing

Cog Cog

Applications

To absorb axial expansions, reduce stress and noise in the system, all machines, all motors, all pumps, industrial applications, exhaust applications, gas and water lines, drinking water lines, etc.

Palette Palette

Paint Information

Flanges between DN 25–DN 300 are cadmium plated. For sizes DN 300 and above, specially painted flanges resistant to corrosion are used. It offers high durability and long-lasting use for industrial systems.

Attention Attention

Special Note

If requested, the design temperature can be increased to +950°C. Contact us for special requests. Flange tables are in the technical tables section. Product weights have a tolerance of ±10%. Liner is recommended for abrasive fluids.

Diameter Length

L-LF-L1

Outer Diameter Movement +/- Spring Rate Bellows effective Area Pipe Diameter Approx.
Weight
40 705 x 720 x 310 76,1 -100 21 24 48,3 x 2,6 5.0
50 705 x 720 x 310 88,9 -100 22 37 60,3 x 2,9 5.5
65 705 x 720 x 310 114,3 -100 23 58 76,1 x 2,9 9.0
80 705 x 720 x 310 133,0 -100 24 82 88,9 x 3,2 11.0
100 745 x 760 x355 159,0 -125 37 134 114,3 x 3,6 18.5
125 695 x 710 x 305 193,7 -125 46 192 139,7 x 4,0 22.5
150 695 x 710 x 305 219,1 -125 55 265 168,3 x 4,5 26.0
200 735 x 750 x 350 273,0 -150 102 442 219,1 x 4,5 36.0
250 735 x 750 x 350 323,9 -150 143 683 273,0 x 5,0 50.0
300 735 x 750 x 350 380,0 -150 155 1017 323,9 x 5,6 70.0
