KRS-34 PN 16

Cardan Hinged-Weld End

Angular expansion joints are specially designed expansion elements with flexible movement capabilities, used to control thermal expansion in piping systems. These joints safely absorb expansion in the system by converting axial movement into angular motion in a plane perpendicular to the pipe axis. In doing so, they help preserve the structural integrity of the pipeline and minimize the adverse effects of thermal stresses.

Angular expansion joints are primarily used to accommodate angular movements in a single plane (e.g., perpendicular to the pipeline). However, with special designs, it is also possible to absorb movements occurring in multiple directions. In this regard, they offer flexible solutions tailored to the system’s needs and are suitable for a wide range of applications.

System configurations using two or more angular expansion joints together provide high performance, especially in long-distance pipelines and applications with significant thermal expansion. These combinations make it possible to safely and effectively absorb large amounts of thermal movement.

Additionally, when used in conjunction with fixed points and direction-changing elements, the durability and service life of the system are significantly enhanced.

Clipboard Clipboard

Technical Information

Standard Production: AISI 321 – DIN 1.4541
Custom Production: AISI 304 (DIN 1.4541), AISI 309 (DIN 1.4828), AISI 316 (DIN 1.4401), AISI 316 Ti (DIN 1.4571), etc.

Design Pressure: 16 BAR
Design Temperature: –196 to +550 °C

Standard Flange: Rst 37-2 (DIN 1.0038)
Custom Flange: Stainless Steel according to DIN – BS – EN – ANSI standards, etc.

Standard Hinge: Rst 37-2 (DIN 1.0038)
Custom Hinge: AISI 304 (DIN 1.4541), AISI 309 (DIN 1.4828), AISI 316 (DIN 1.4401), AISI 316 Ti (DIN 1.4571), etc.

Brush Brush

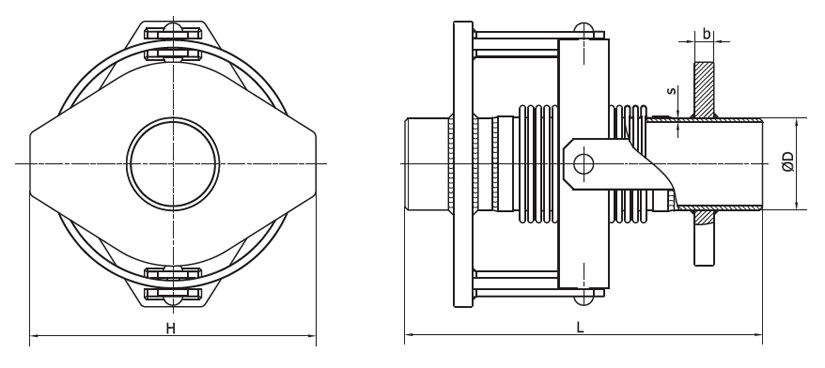

Technical Drawing

Cog Cog

Applications

Lateral expansion joints absorb lateral movements in piping systems, reducing stress and vibration-induced noise within the system. They are reliably used in all types of machinery, engines, pumps, industrial process lines, exhaust systems, gas and water installations, as well as in potable water applications.

Palette Palette

Painting Information

All bellows, hinge, and flange components are coated with a special protective paint against corrosion in all sizes. This coating ensures long-term durability, especially in systems exposed to outdoor environmental conditions. Surface treatments are meticulously applied in accordance with quality and safety standards.

Attention Attention

Special Note

Design temperatures can be increased up to +950 °C upon request. For special operating conditions, please contact our technical team. For flange dimensions, refer to the “Useful Technical Tables” section. Product weights are subject to a tolerance of ±10%.

Diameter
DN Ø		 Length
L (mm)		 Welding End Size
Ø D x s (mm)		 Flange Outer Diameter
(mm)		 Angular Movement +/-
(°)		 Angular Force
(Nm/°)		 Bellow Effective Area
(cm²)		 Approx. Weight
(kg)
25 240 33.7×2.6 185 25 0.3 24 5.5
32 240 42.4×2.6 195 25 0.4 27 6
40 250 48.3×2.6 200 25 0.6 30 6.5
50 250 60.3×2.9 205 25 0.7 33 7
65 275 76.1×2.9 215 25 0.9 48 8
80 280 88.9×3.2 265 20 1.9 74 12
100 295 114.3×3.6 295 20 2.4 110 14
125 305 139.7×4.0 335 15 4.9 153 19
150 325 168.3×4.5 375 15 8.8 231 30
200 380 219.1×6.3 450 15 12.8 412 60
250 380 273.0×6.3 520 15 23.5 610 71
300 835 323.9×7.1 575 10 71.5 978 95
350 835 355.6×8.0 715 8 86.5 1163 118
400 835 406.4×8.0 755 8 115.0 1492 162
450 835 457.2×10.0 795 6 147 1863 205
500 835 508.0×10.0 965 6 181 2269 235
